DESCRIPTION

Basic Info.

Model NO.	JD6050-9080
Principle	Press-in
Control	Artificial
Layout	Vertical
Automation	Automatic
Kind	Dry Sandblaster
Condition	New
Certification	CE, RoHS
Customized	Customized
Compressed Air Consumption	1m3/Min
Compressed Air Pressure	0.8MPa
Working Chamber Size	900X800
Air Consumption(Gun)	1-1.2m3/Min
Power Supply	220V, 50Hz
Fan for Dust Collector	0.55kw
Lighting Device	13W
Transport Package	Wooden Box
Specification	900x1200x1900
Trademark	JUNDA
Origin	China
HS Code	8424200000
Production Capacity	200 Sets Per Month

Product Description

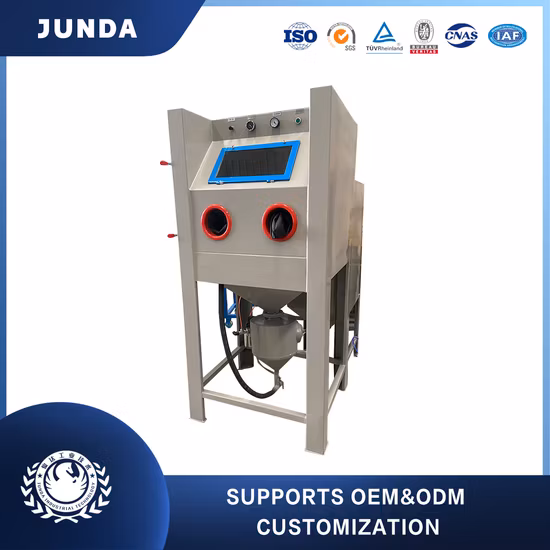

Sand Blasting Machine/Abrasive Blasting Equipment/Sandblasting Machines, Sand Blaster Cabinet

Product Overview

Our blasting cabinet are produced by experienced engineers team of JUNDA.To pursue the best performance, the cabinet body is steel plate welded with powder coated surface, which is more durable, wear-resistant and lifelong than traditional painting

Product Technical Parameters
Junda sandblasting cabinet has dry sandblasting cabinet, wet sandblasting cabinet, and automatic sandblasting machine.We can produce according to customer requirements, customize various sizes of sandblasting cabinet, also can customize double station and three station sandblasting cabinet.

Model	JD-6050NC/HC	JD-9060NC	JD-9060HC	JD-9070NC	JD-9070HC
Outline dimension	600X900X1500MM	900X1000X1600MM	900X1000X1900MM	900X1000X1600MM	900X1000X1900MM
Working chamber size	600X500MM	900X600MM	900X600MM	900X700MM	900x700MM
Worktable diameter	600X500MM	900X600MM	900X600MM	900X700MM	900x700MM
Loading weight	100KG	100KG	100KG	100KG	100KG
Power supply	220V, 50HZ	220V, 50HZ	220V, 50HZ	220V, 50HZ	220V, 50HZ
Fan for dust collector	0.55KW	0.55KW	0.55KW	0.55KW	0.55KW
Lighting device	13W	13W	13W	13W	13W
Compressed air pressure	0.8Map	0.8Map	0.8Map	0.8Mpa	0.8Mpa
Compressed air consumption	1M3/min	1M3/min	3M3/min	1M3/min	3M3/min
Working pressure(Gun)	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa
Air consumption(Gun)	1-1.2M3/min	1-1.2M3/min	1-1.2M3/min	1-1.2M3/min	M3/mi

Model	JD-9080NC	JD-9080HC	JD-1212HC/JDW-1212	JD-1515HC/JDW-1515	JD-1520HC/JDW-1520
Outline dimension	900X1200X1600MM	900X1200X1900MM	1200X1400X1800MM	1500X1700X2000MM	1500X2300X2000MM
Working chamber size	900X800MM	900X800MM	1200X1200MM	1500X1500MM	1500X2000MM
Worktable diameter	900X800MM	900X800MM	1200X1200MM	1500X1500MM	1500X2000MM
Loading weight	100KG	100KG	100KG	100KG	100KG
Power supply	220V, 50HZ	220V, 50HZ	220V, 50HZ	220V, 50HZ	220V, 50HZ
Fan for dust collector	0.55KW	0.55KW	0.55KW	0.55KW	0.55KW
Lighting device	13W	13W	13W	13W	13W
Compressed air pressure	0.8Map	0.8Map	0.8Map	0.8Map	0.8Map
Compressed air consumption	1M3/min	3M3/min	3M3/min	3M3/min	3M3/min
Working pressure(Gun)	0.4-0.6Map	0.4-0.6Map	0.4-0.6Map	0.4-0.6Map	0.4-0.6Map
Air consumption(Gun)	1-1.2M3/min	1-1.2M3/min	1-1.2M3/min	1-1.2M3/min	1-1.2M3/min

Product Application
It is suitable for liquid sand /shot blasting processing.

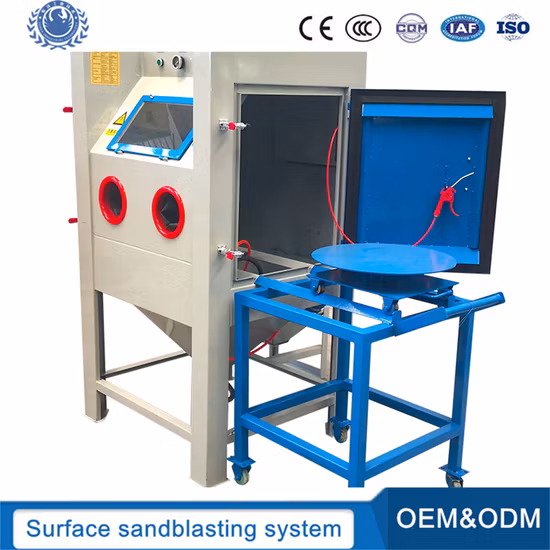

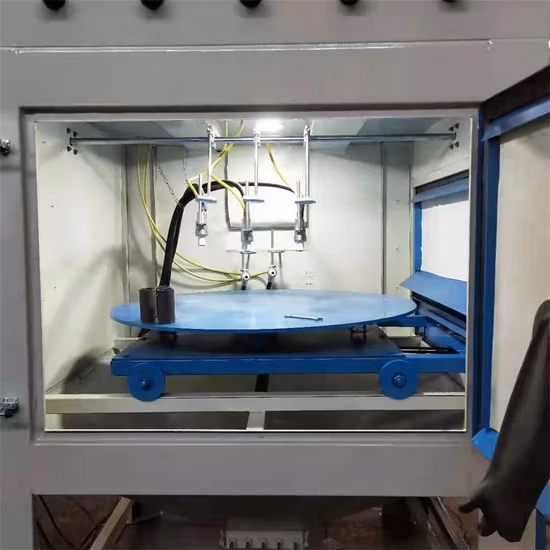

1.Cleaning the rough surface of the precision castings, removing the oxide scale, removing the micro-burr of the machined parts, cleaning the dirt and rust stain of the oil-stained parts, surface processing,etc.2.The heavy duty blast cabinet with turntable is specially designed for blast and cleaningheavy and large product, like mold, statue, motor, car wheels, etc.

Product advantages:
1.Simple operation and high efficiency. Different blasting materials can be replaced and automatically recycled according to different process requirements,. 2.With one spray gun. the spray gun is made of aluminum alloy, and the nozzle is made of wear-resistant boron carbide material, allowing customers with confidence to use diamonds, silicon carbide and other sharp sand materials. 3. Cyclone separator and thermostat can be installed according to the product and sand. The cyclone separator can effectively separate the swimming sand and dust to recover the escaped sand, which reduces the sand loss and the burden on the filter bag. 4. Equipped with a crawler dust collector, can clear the dust generated in the work, colleagues can avoid the phenomenon of dust spontaneous combustion.

Our Certificate
Our machines are certified by authoritative organizations, such as CE and ISO, We regularly attend trade shows all over the worldand the quality is trustworthy.
Transportation & Packaging
Wooden box packaging better protects the product and is convenient for loading and unloading.
Company Introduction
Jinan Junda Industrial Technology Co.,Ltd, established in 2005, is specialized in the development,manufacture, marketing and service-supplying of abrasives and sand blasting equipment, spare parts & protective tools. With its headquarter in Jinan city, Shandong province, Junda is becoming the leading enterprise in the field of metal surface finishing.
FAQ Q1:What's the delivery time?A : 5-10 work days after receiving client's paymentQ2: What's package?
A: wooden box packagingQ3: Do you have any timely technology supports?
A: we have a professional technology supporting team for your timely services. We prepare the technical documents for you, alsoyou can contact us by telephone, online chat (whats, skype, phone).Q4: What's the payment method?
A: T/T, WESTERN UNION, MONEY GRAM,LC...Q5: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contactwithin 2days. Because we've bought insurance for you, we or shipping company will be responsible!If any need, please do not hesitate to contact us.Arya has been waiting for you . We are glad to serve you,thanks!
